LD Cummins Diesel Generator Set 60~112kw
- [Return Home] [Go Back]
Product Name:
LD Cummins Diesel Generator Set 60~112kwModel No.:
LD Cummins GeneratorPrice:
FOB Shenzhen $5500~7500Minimum Order:
1
Product Abstract:

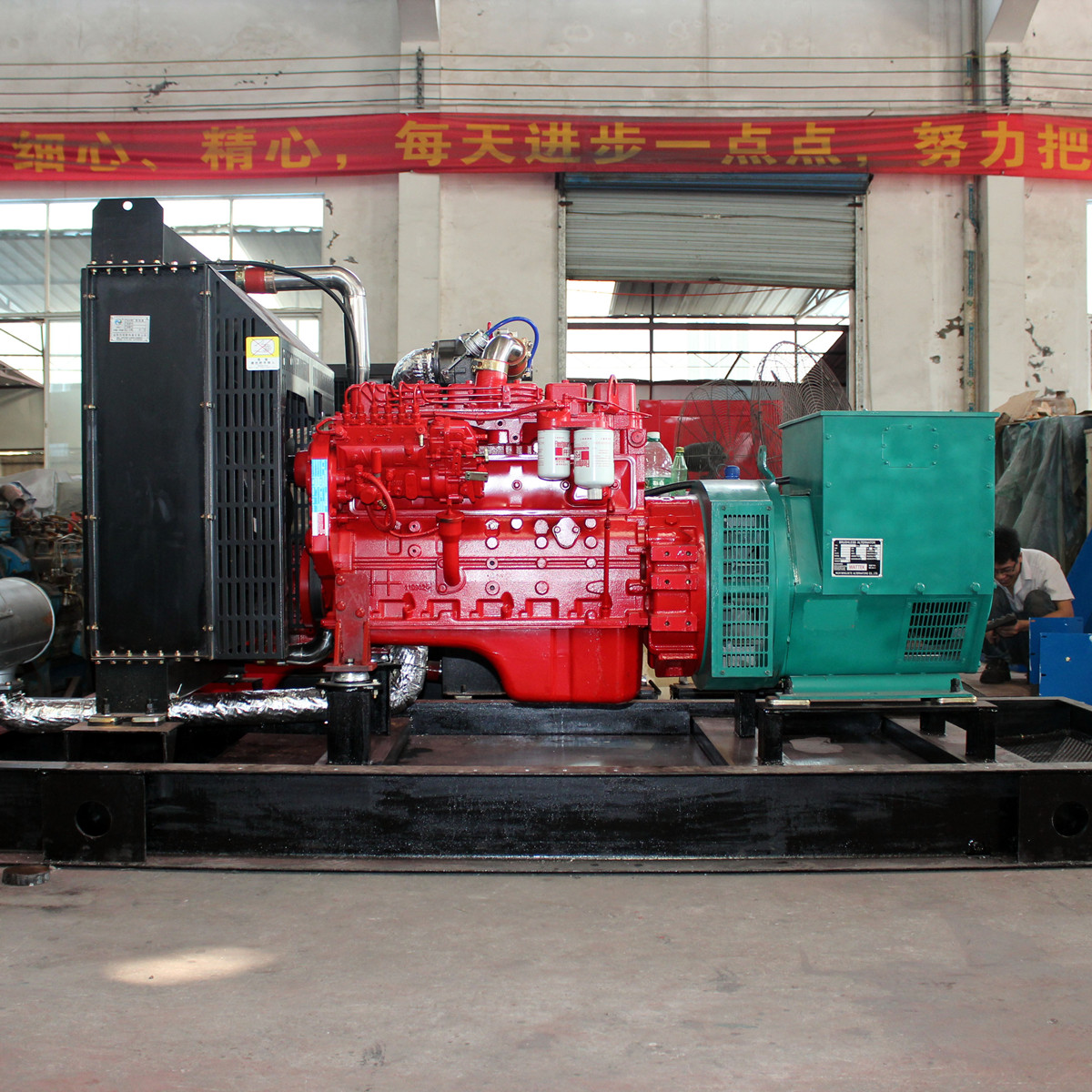

LD Cummins Diesel Generator Set is equipped with our own manufactured LD6BT Cummins Diesel Engines, Wattek alternator ( produced by Stamford technology), and Smartgen Controller 6120.
- Product Description
Engines Applications: Equipped our own LD6BT Cummins engines, lower fuel consumption, lower noise, convenient maintanecne and
share spare parts with DCEC Cummins parts supply system;
Alternator & Controller: Wattek brand alternator 224,274 made by Stamford technoloty; Smartgen controller 6120, the best controller brand in China;
Genset Characteristics: 24V Electric start; radiator can meet environment temperature 50 degree;
Warranty: warranty will be 12 month; parts under warranty period will be sent by seller without charge (easy tore parts are not included);Genset Model (LD Brand)
LDC60GF
LDC80GF
LDC100GF
LDC112GF
Rated Power/Speed (kw/r/min)
60/1500
80/1500
100/1500
112/1500
LD6BT Engine
Engine Model
LD6BT5.9-G1
LD6BT5.9-G1
LD6BTA5.9-G1
LD6BTAA5.9-G1
Rated Power/Speed kw/r/min
92/1500
92/1500
110/1500
120/1500
Type
Vertical,inline, water-cooled, four stroke
Intake Way
Turbocharged
Turbocharged & Inter-cooled
No of cylinders×bore×stroke (mm)
6-102x120
Total displacement(L)
5.9
Min fuel consumption (g/kw.h)
≤200
≤200
≤195
≤195
Starting type
Electric
Speed governor model
Machanical
Oil capacity(L)
14-16
Low noise limit dB (A)
98
Wattek Alternator
Alternator model
224F
274C
274D
274E
Rated voltage (V)
400/230, 380/220
Current( A)
108
114
180
202
Freq( Hz)
50, 60
Regulator approach
AVR
Power factor (CosØ)
0.8 Lagging
Phase
3Phase 4Wire
Insulation Class
F / H
Protection Class
IP22 / IP23
Genset Packing
Net weight (kg)
800
Genset dimension L*W*H (mm)
2800×800×1400
