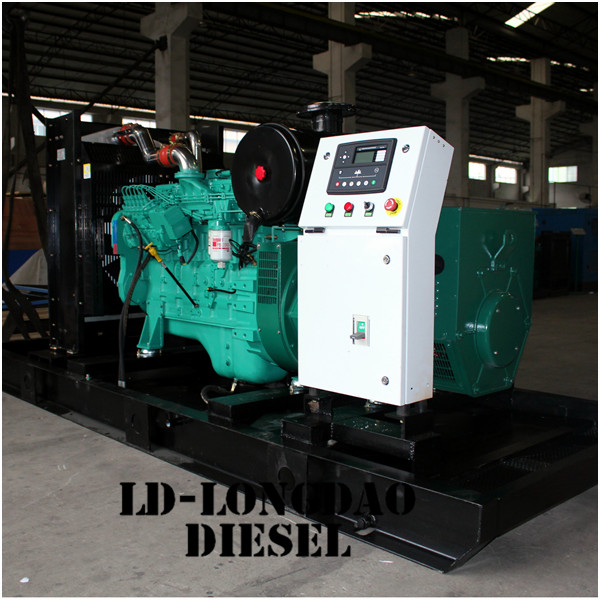

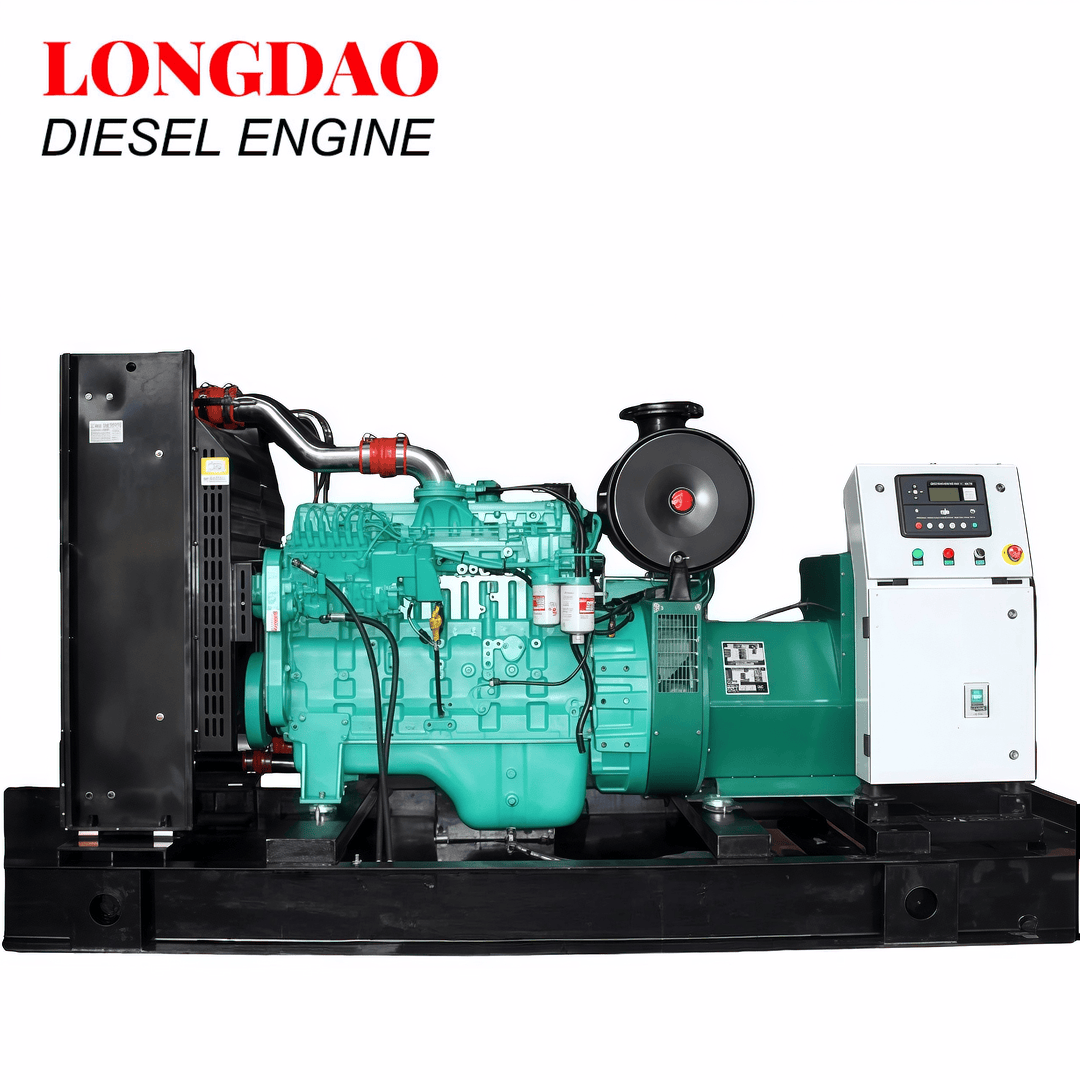

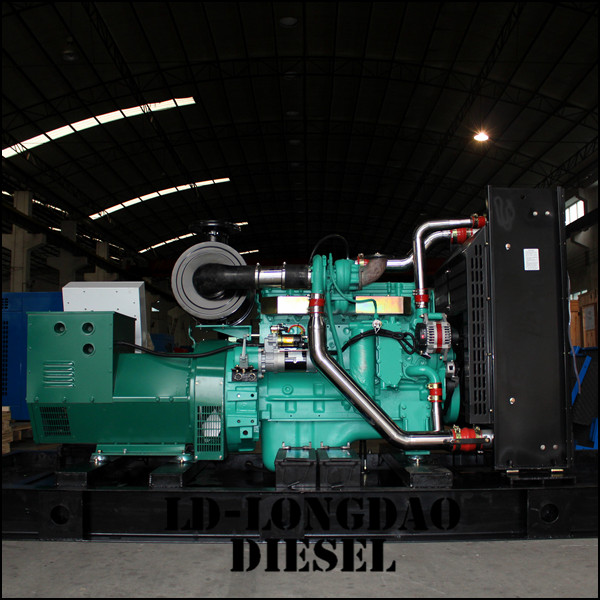

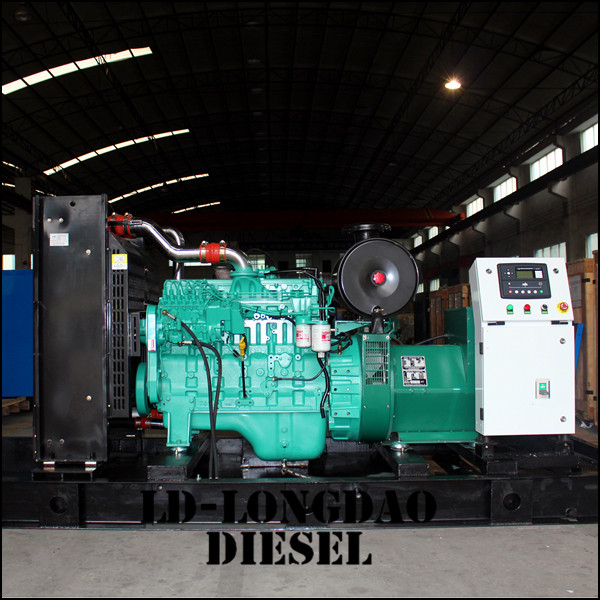

LD Cummins Diesel Generator Set 128~200kw
- [Return Home] [Go Back]
Product Name:
LD Cummins Diesel Generator Set 128~200kwModel No.:
LD Cummins GeneratorPrice:
FOB Shenzhen $8500~12000Minimum Order:
1
Product Abstract:
LD Cummins Diesel Generator Set is equipped with our own manufactured LD6CT LD6LTAA Cummins Diesel Engines, Wattek alternator ( produced by Stamford technology), and Smartgen Controller 6120.
- Product Description
Engines ApplicationsEquipped our own LD6CT LD6LTAA Cummins engines, lower fuel consumption, lower noise, convenient maintanecne and
share spare parts with DCEC Cummins parts supply system;
Alternator & ControllerWattek brand alternator 274, made by Stamford technoloty; Smartgen controller 6120, the best controller brand in China;
Genset Characteristics 24V Electric start; radiator can meet environment temperature 50 degree;
Warranty: warranty will be 12 month; parts under warranty period will be sent by seller without charge (easy tore parts are not included);Genset Model (LD Brand)
LDC128GF
LDC150GF
LDC160GF
LDC200GF
Rated Power/Speed (kw/r/min)
128/1500
150/1500
160/1500
200/1500
LD6CT,
LD6LTAA
EngineEngine Model
LD6CT8.3-G1
LD6CTA8.3-G2
LD6CTAA8.3-G2
LD6LTAA8.9-G2
Rated Power/Speed kw/r/min
133/1500
163/1500
183/1500
220/1500
Type
Vertical,inline, water-cooled, four stroke
Intake Way
Turbocharged
Turbocharged & Inter-cooled
Number of cylinders×bore×stroke (mm)
6-114×135
6-114x145
Total displacement(L)
8.3
8.9
Min fuel consumption (g/kw.h)
≤200
≤200
≤195
≤195
Starting type
Electric
Speed governor model
Machanical
Electric
Oil capacity(L)
20-22
Low noise limit dB (A)
98
Wattek Alternator
Alternator model
274F
274G
274H
274K
Rated voltage (V)
400/230, 380/220
Current( A)
230
270
288
360
Freq( Hz)
50, 60
Regulator approach
AVR
Power factor (CosØ)
0.8 Lagging
Phase
3Phase 4Wire
Insulation Class
F / H
Protection Class
IP22 / IP23
Genset Packing
Net weight (kg)
2200
Genset dimension L*W*H (mm)
3300×1200×1550
