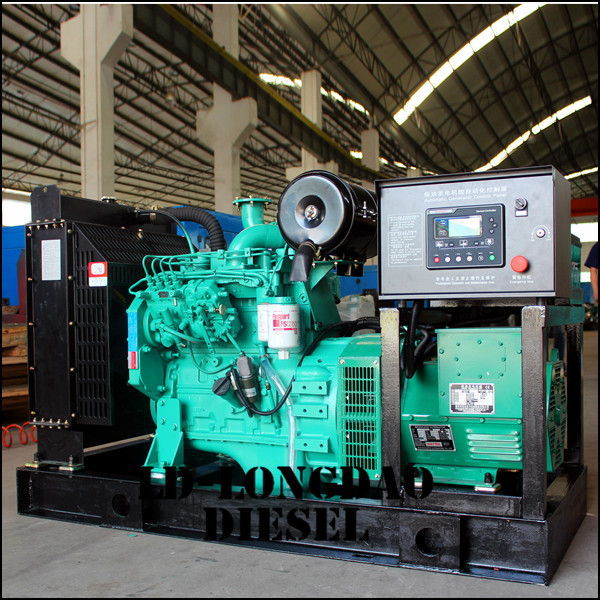

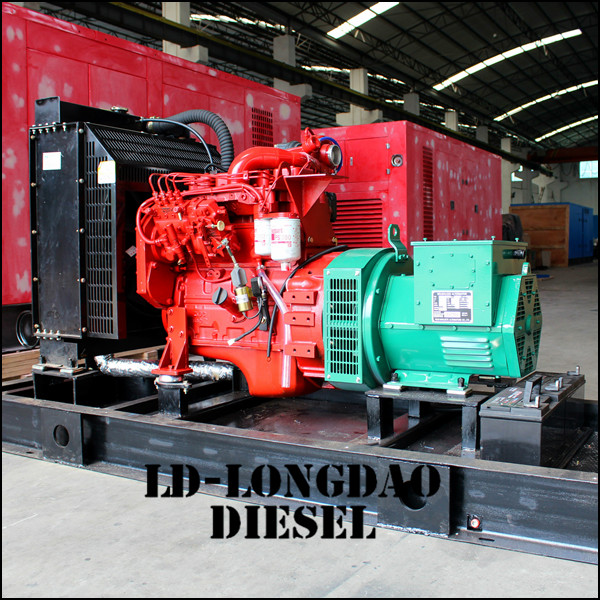

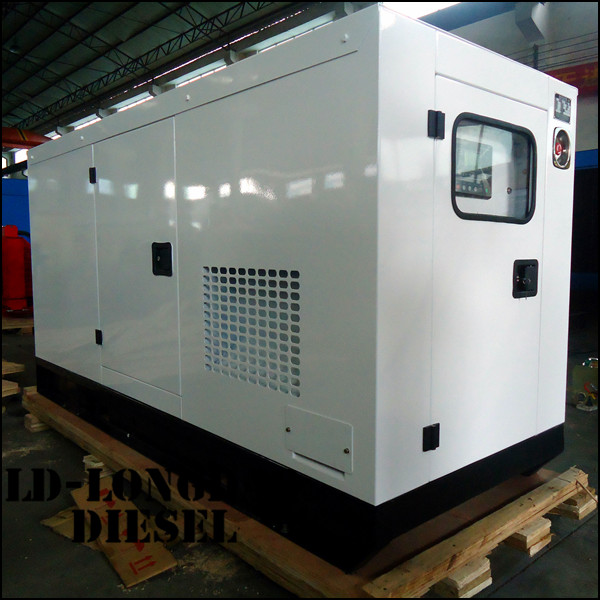

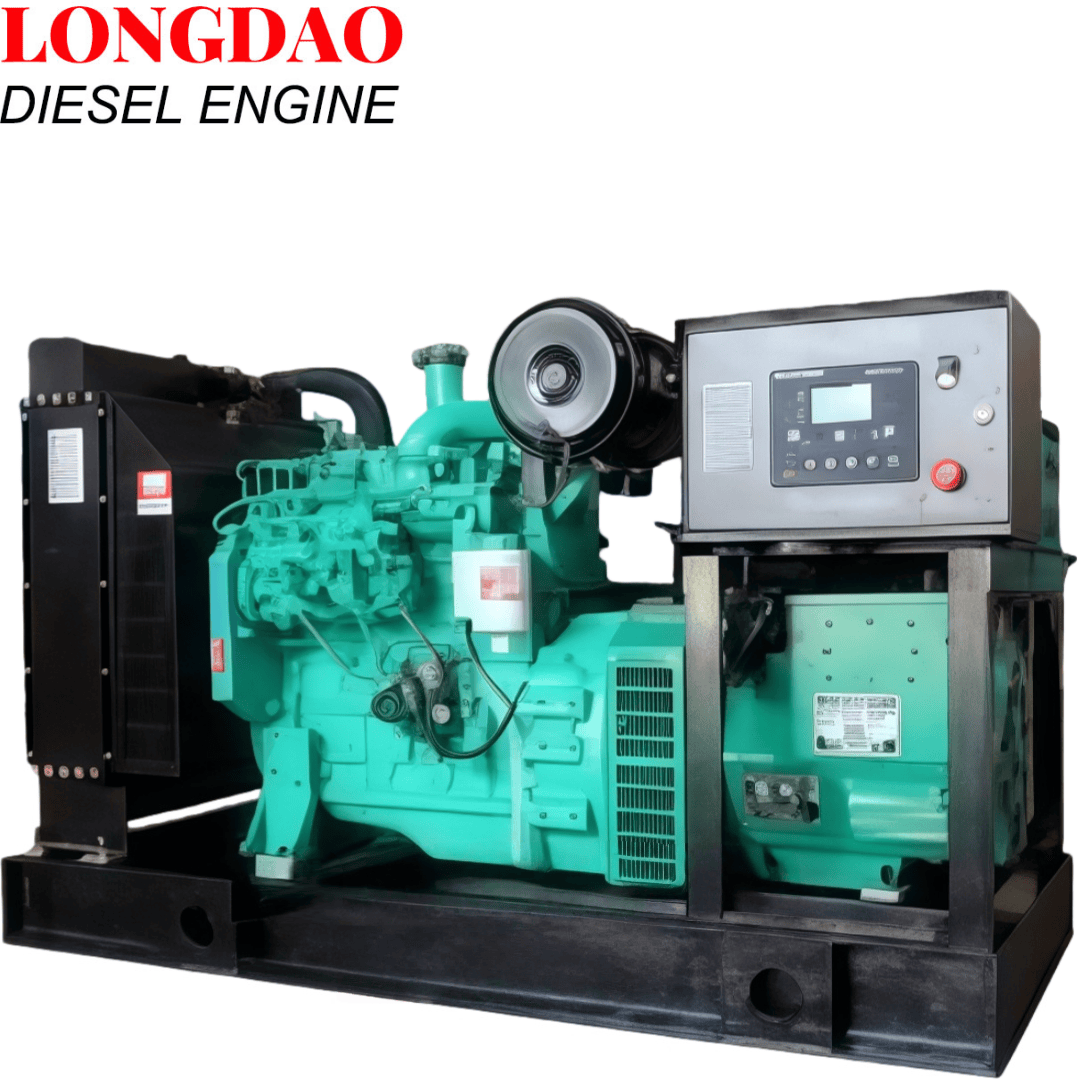

LD Cummins Diesel Generator Set 22~50kw
- [Return Home] [Go Back]
Product Name:
LD Cummins Diesel Generator Set 22~50kwModel No.:
LD Cummins GeneratorPrice:
FOB Shenzhen $4000~5150Minimum Order:
1
Product Abstract:
LD Cummins Diesel Generator Set is equipped with our own manufactured LD Cummins Diesel Engines, Wattek alternator ( produced by Stamford technology), and Smartgen Controller 6120.
- Product Description
Engines ApplicationsEquipped our own LD4BT Cummins engines, lower fuel consumption, lower noise, convenient maintanecne and
share spare parts with DCEC Cummins parts supply system;
Alternator & ControllerWattek brand alternator 184, 224, made by Stamford technoloty; Smartgen controller 6120, the best controller brand in China;
Genset Characteristics 24V Electric start; radiator can meet environment temperature 50 degree;
Warranty: warranty will be 12 month; parts under warranty period will be sent by seller without charge (easy tore parts are not included);Genset Model (LD Brand)
LD22GF
LD30GF
LD40GF
LD50GF
Rated Power/Speed (kw/r/min)
22/1500
30/1500
40/1500
50/1500
LD4BT Engine
Engine Model
LD4B3.9-G1
LD4BT3.9-G1
LD4BTA3.9-G1
LD4BTAA3.9-G2
Rated Power/Speed kw/r/min
24/1500
36/1500
50/1500
55/1500
Type
Vertical,inline, water-cooled, four stroke
Intake Way
Natural
Turbocharged
Turbocharged & Inter-cooled
Number of cylinders×bore×stroke (mm)
4-102x120
Total displacement(L)
3.9
Min fuel consumption (g/kw.h)
≤225
≤205
≤195
≤195
Starting type
Electric
Speed governor model
Electric
Oil capacity(L)
10-12
Low noise limit dB (A)
98
Wattek Alternator
Alternator model
184F
184H
224D
224E
Rated voltage (V)
400/230
Current( A)
39.6
54
72
90
Freq( Hz)
50
Regulator approach
AVR
Power factor (CosØ)
0.8 Lagging
Phase
3Phase 4Wire
Insulation Class
F / H
Protection Class
IP22 / IP23
Genset Packing
Net weight (kg)
600
Genset dimension L*W*H (mm)
1600x800x1300
