LD200~300kw柴油å‘电机组
产品名称:
LD200~300kw柴油å‘电机组型号:
LD Diesel Generator价格:
FOB Shenzhen $10000~18000最小起订量:
1
产品摘要:

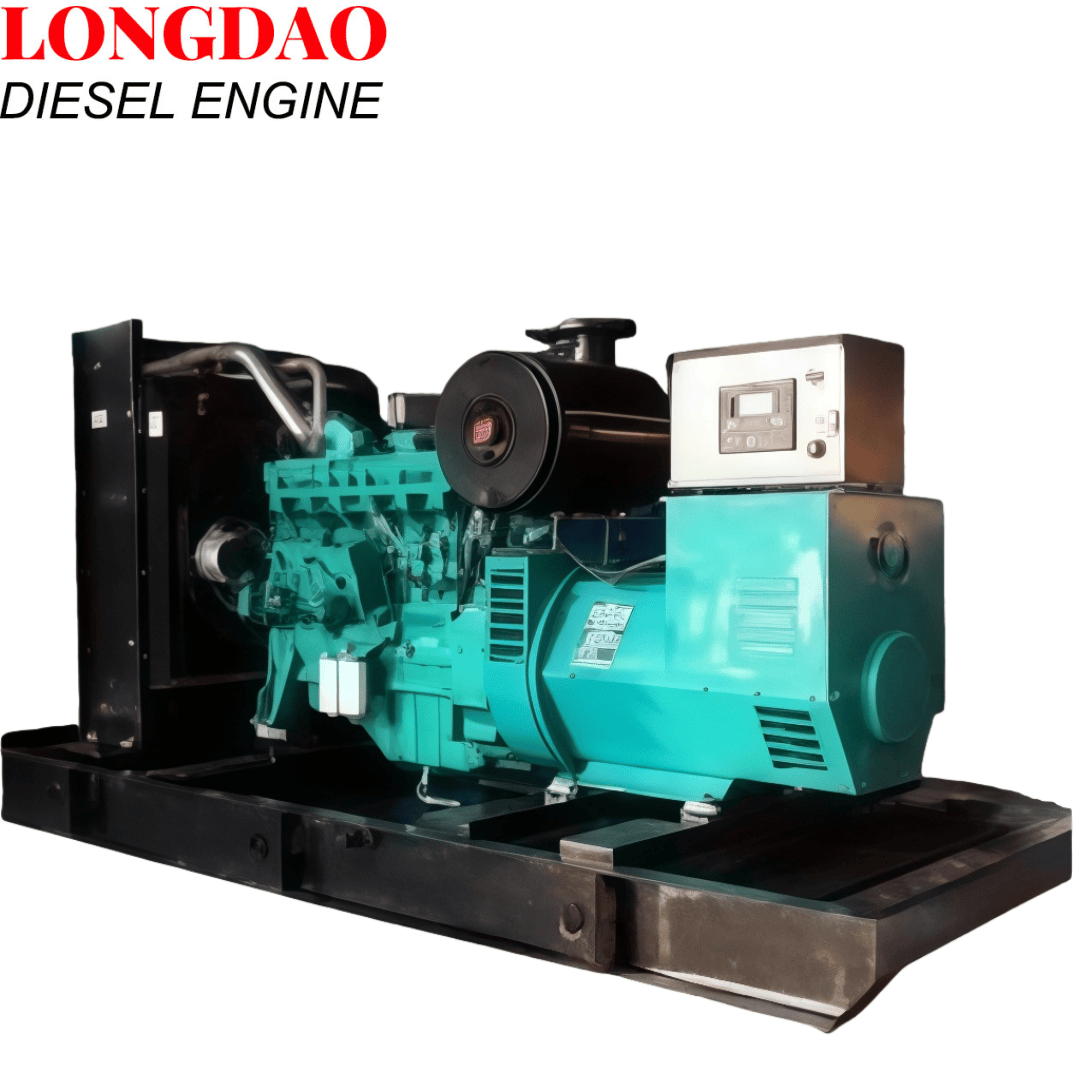

LD Diesel Generator Set is equipped with our own manufactured LD Diesel Engines, Wattek alternator ( produced by Stamford technology), and Smartgen Controller 6120.
- 产品描述
Engines ApplicationsEquipped our own LD6M, LD6MK engines, lower fuel consumption, lower noise, convenient maintanecne,
and share spare parts with Yuchai engines parts supply system;
Alternator & ControllerWattek brand alternator made by Stamford technoloty; Smartgen controller 6120, the best controller brand in China
Genset Characteristics 24V Electric start; radiator can meet environment temperature 50 degree;Genset Model (LD Brand)
LD200GF
LD250GF
LD300GF
Rated Power/Speed kw/r/min
200/1500
250/1500
300/1500
LD6LM, LD6M
Engine
Engine Model
LD6LM350L
LD6M420L
LD6MK510L
Rated Power/Speed kw/r/min
235/1500
280/1500
341/1500
Type
Vertical,inline, water-cooled, four stroke
Intake Way
Turbocharged & Inter-cooled
Number of cylinders×bore×stroke (mm)
6-135×150
6-135×165
Total displacement(L)
12.9
14.2
Min fuel consumption (g/kw.h)
≤195
Starting type
Electric
Speed governor model
Electrical
Oil capacity(L)
28-30
Low noise limit dB (A)
≤103
Wattek
Alternator
Alternator model
274K
4ES
4F
Rated voltage (V)
400/230 or 380/220
Current( A)
360
450
540
Freq( Hz)
50 or 60
Regulator approach
AVR
Power factor (CosØ)
0.8 Lagging
Phase
3Phase 4Wire
Insulation Class
F / H
Protection Class
IP22 / IP23
Genset
Packing
Net weight (kg)
2200
2800
Genset dimension L*W*H (mm)
3600×1400×1550
3800×1400×1600
