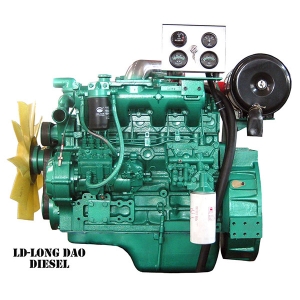

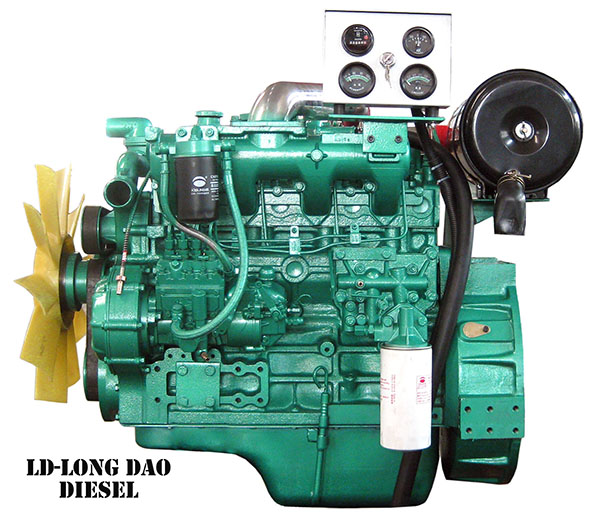

LD4D Diesel Engines
- [Return Home] [Go Back]
Product Name:
LD4D Diesel EnginesModel No.:
LD4DPrice:
$2800~3100Minimum Order:
1
Product Abstract:
4D series engines for diesel generator set is designed by technology origin from Germany FEV, Yuchai, which speed in 1500rpm and 1800rpm, power range from 33~76kw. Suit application of diesel generator set 25~60kw!
- Product Description
Advanced Technology & Design Origin from Germany FEV, Yuchai companies, with more compact structures, engine overhaul can
meet more than 12000 hours;
Common Parts Supply System Parts will share Yuchai engines parts supply system, cheap and easy to get in current market;
Environmentally Operation Fuel consumption will lower 205g/kw.h, with lesser vibration, noise; best choice for samll machines;
Application Diesel genset power range from 25kw to 45kw.
Warranty 12 month or 1500 working hours; parts under warranty will be sent by seller in free charge.Model
LD4D85Z
LD4D115L
Type
Vertical, in-line, water-cooled, 4-stroke
Intake Way
Turbocharged
Turbocharged& Inter-cooler
No Cylinders, Bore x Stroke (mm)
4-108x120
Displacement（L）
4.4
Compression ratio
17.5:1
Rated power/speed（kW/r/min）
55/1500
76/1500
Standby power/speed (kW/r/min）
60/1500
84/1500
Min fuel consumption g/(kW·h)
≤205
≤200
Oil capability(L)
11~13
Oil Consumption g/(kW·h)
≤1.0
Starting Type
Electric start
Noise limit dB（A）
≤102
Type of Governor
Mechanical
Governing Rate
≤5%
Flywheel house/flywheel
3#11.5
Applicable altitude(m)
≤2500
Dimension(mm)
1450x800x110
Net weight (kg)
450
